Levoite™ Router Mortising Jig Loose Tenon Joinery System Adjustable Trim Router Holder Bracket
DESCRIPTION :
Levoite Mortise and Tenon Jig System Mortising Jig for router handheld mortise jig , mortising Jig for loose tenon joinery. 2-In-1 slotting adjustable wood trimminmg machine router mortising jig holder eletric trimmer holder bracket for 65mm trimming nachine. After adjusting the front and rear and left and right limit screws, you can start working. Turn on the trimming machine to push forward and move left and right. This Wood Trimming Machine holder side milling machine is made of aluminum alloy processed by CNC machine tools.

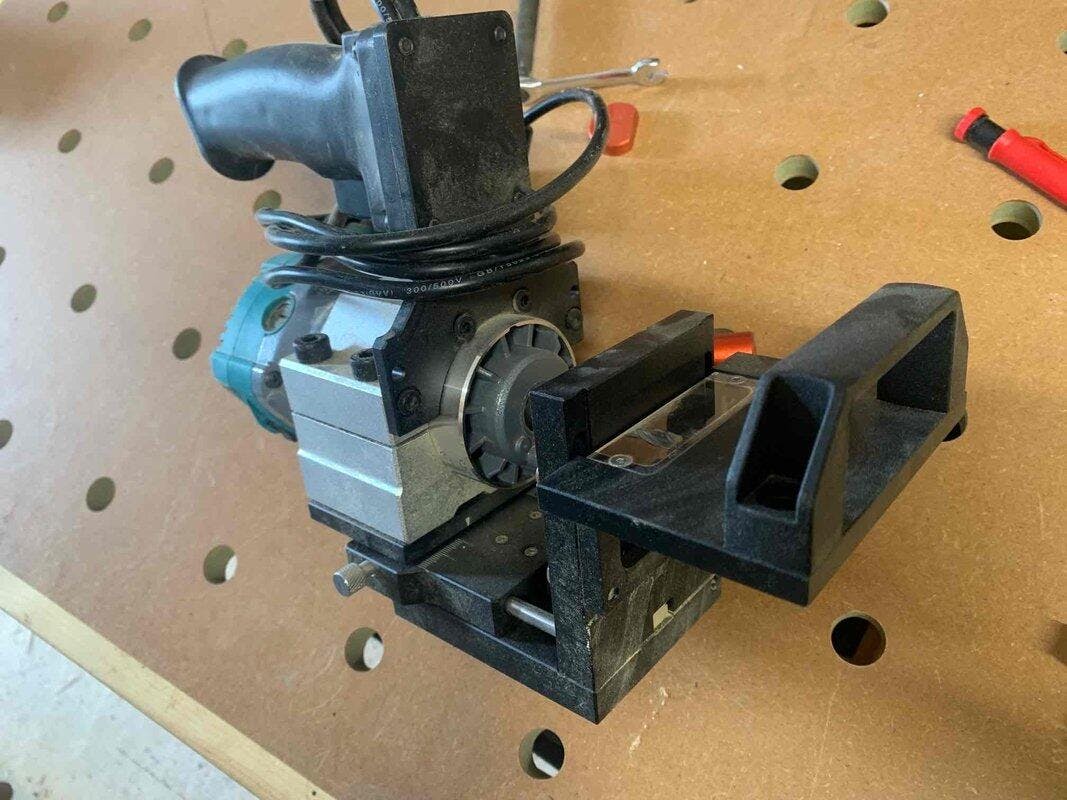

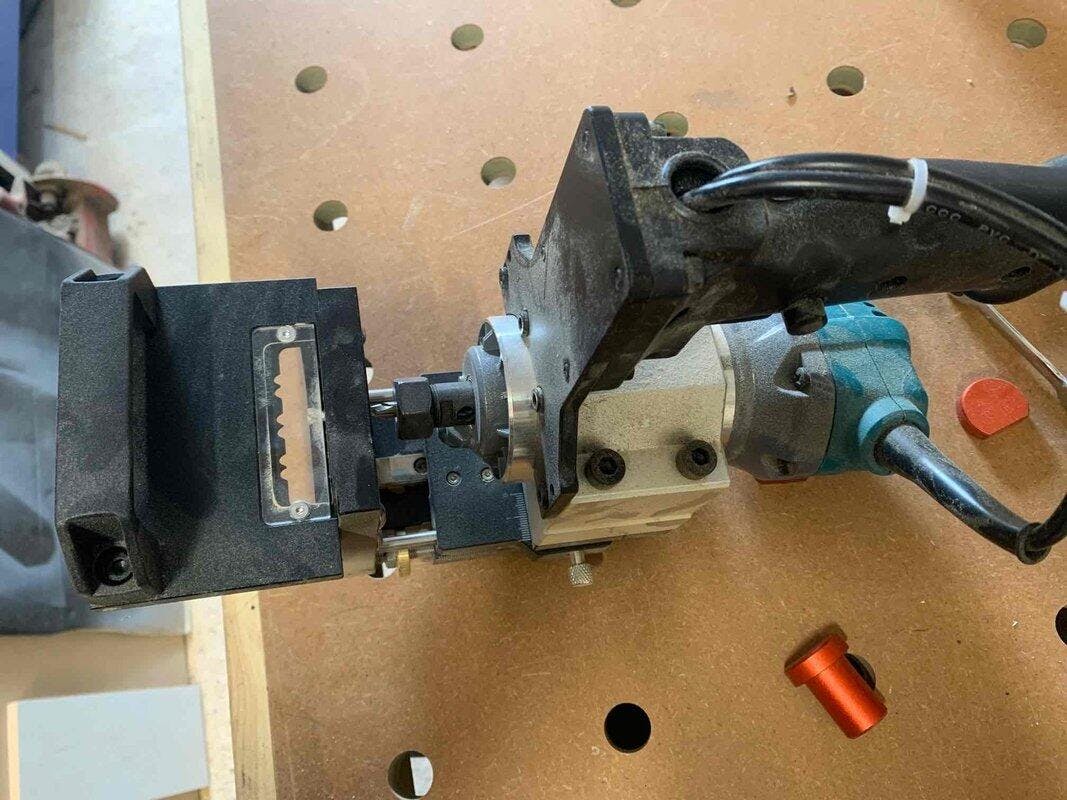

If you don't want to invest in expensive Festool Domino System, but already have router/trimmer with 65mm motor diameter, this jig is right for you. Most of the small trimmers on the market are with 65mm diameters on the motor, but please check yours before buying. The most popular trimmer Makita RC007 fits.
Mortising Jig and Loose Tenon Joinery System
- The jig is made of aluminum alloy processed by CNC
- The black parts are all CNC machined, 6061 aluminum alloy. Surface anodized black.
- The net weight of the whole jig is 1.98kg (excluding trimming machine)

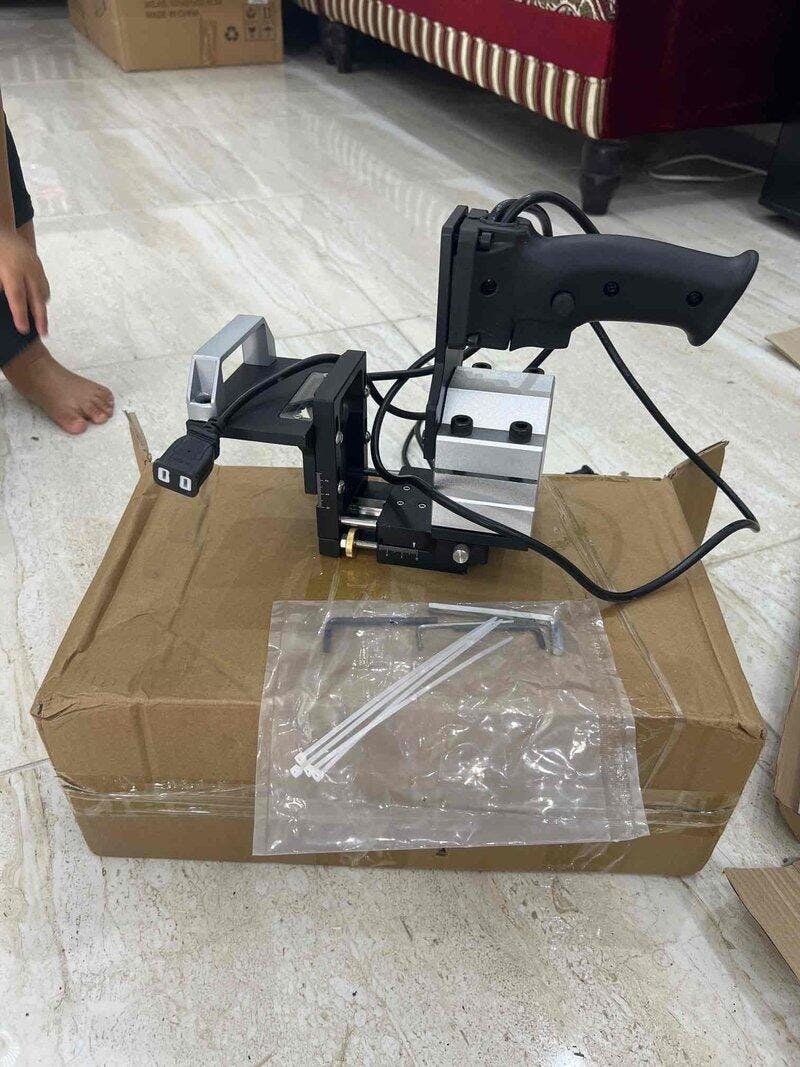

- Equipped with a handle switch, you can connect the power switch to the handle.
SPECIFICATION :
Material : Aluminum alloy 6061
Holding diameter : 65mm
Sliding method : Linear rail
Front and rear adjustment range : 0-25mm
Left and right adjustment range : 0-40mm
Machinable board thickness : 15-40mm
Weight : 1.98KG
FEATURES :

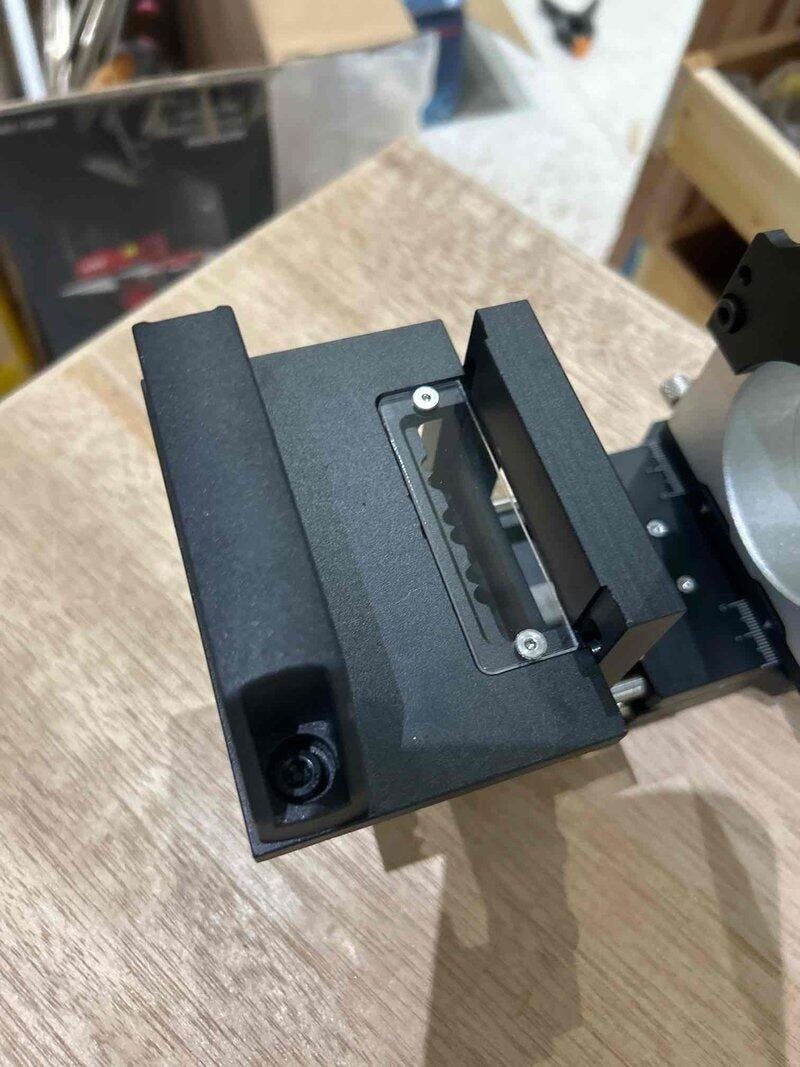

1. It can precisely control the width and depth of the mortise.
2. The upper and lower height can be adjusted to be suitable for boards of different thickness.
3. Move back and forth, left and right to slide through precision line rails, with high smoothness.
4. Move forward and backward with rebound function, after manual pushing, the hand can rebound to the back end after releasing the pushing force.
5. Equipped with a handle switch, you can connect the power switch to the handle.

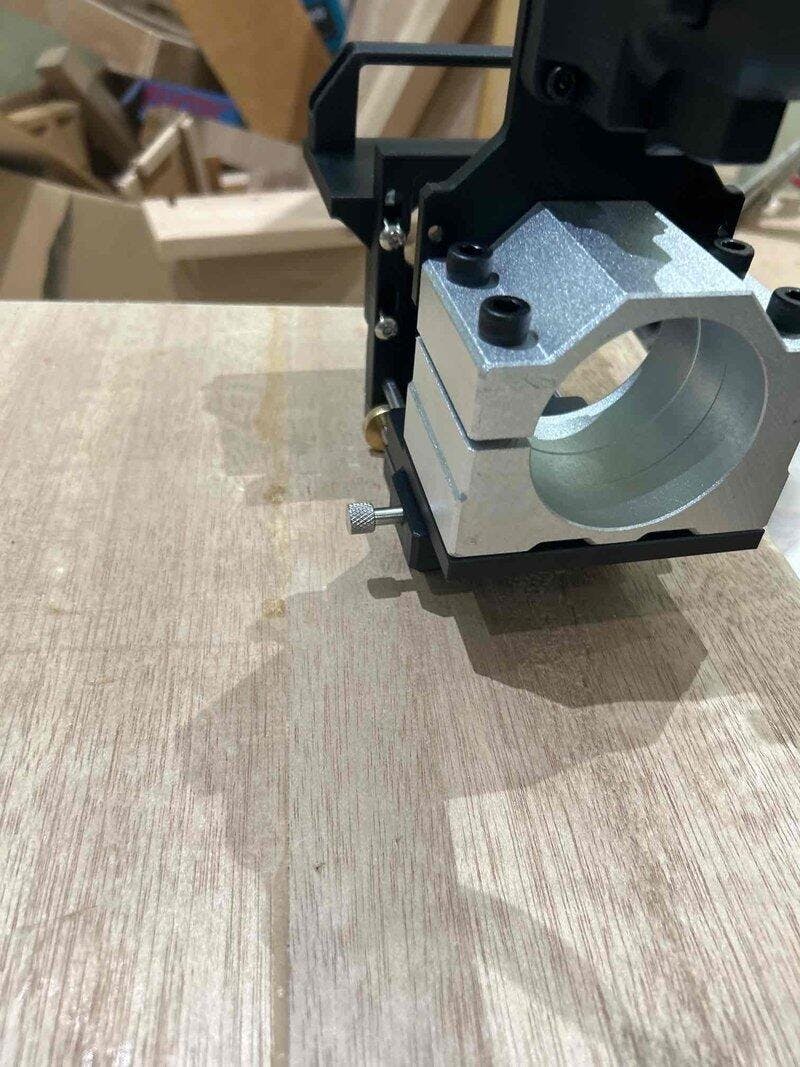

6. Equipped with seat to support trimming machine with fixed diameter of 65mm.
INSTRODUCTION :
1. The left side is equipped with a limit nut to control the depth of the hole by adjusting the nut.

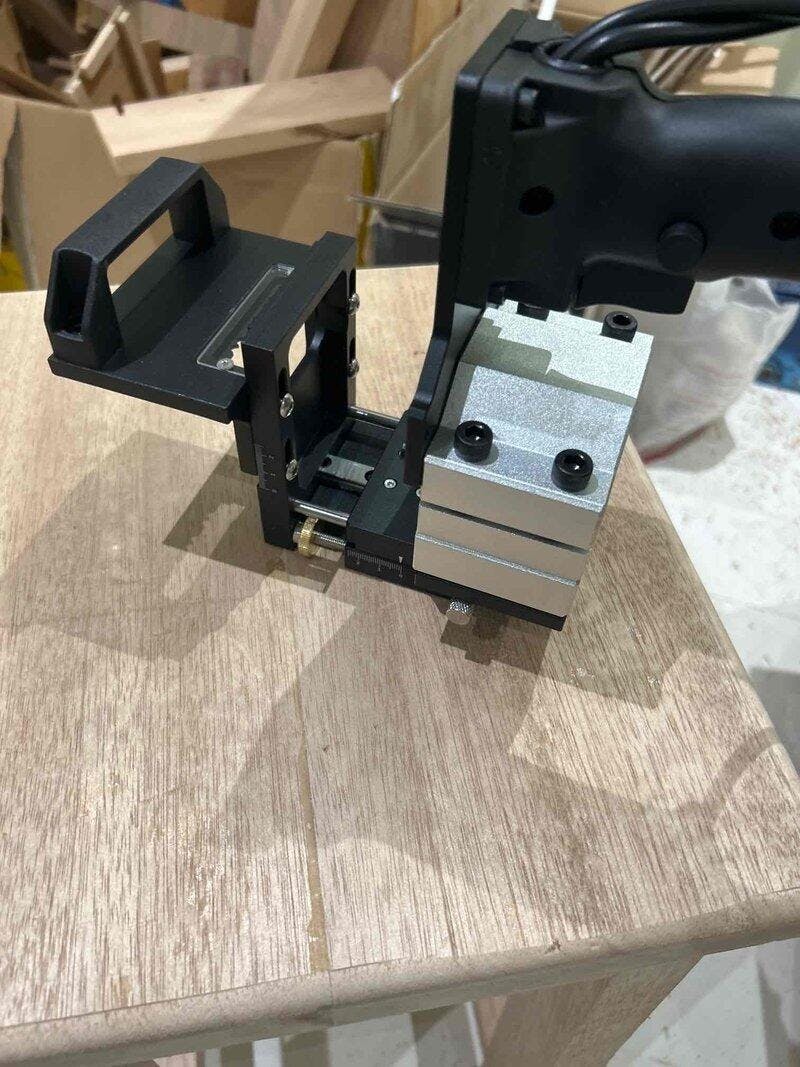

2. The left and right sides of the trimmer are equipped with two brass nuts, which can limit the range of the trimmer's left and right movement. After adjusting the front and rear and left and right limit screws, you can start working.
3. Turn on the router trimmer to push forward and move left and right.
About this item :
- 【Specification】: Forward and backward moving stroke: 0~20mm; Left and right moving stroke: 0~40mm; Processable board thickness: 15~40mm. Suitable for 65mm diameter router, plug and play without modification.
- 【High Quality】: This slotting positioner is made of aluminum alloy processed by CNC machine tool, accurate positioning, strong and durable.
- 【High Efficiency】: The power supply of the trimmer can be connected to the grip switch, press the switch to start working. Portable handle for you to save energy, more improve your work efficiency.
- 【Flexible Adjustment】: The depth width and length of the slotting positioner can be adjusted according to your needs. And the height can be adjusted to accommodate different board thicknesses.
- 【Wide Application】: This Woodworking Slotting Locatorcan be used for two-in-one fastener slotting, suitable for a variety of cabinet splicing, invisible and non-marking.
