Levoite™ Sharpening System Honing Guide for Chisels and Plane Irons
23 reviews
$209.99
$159.99
DESCRIPTION :

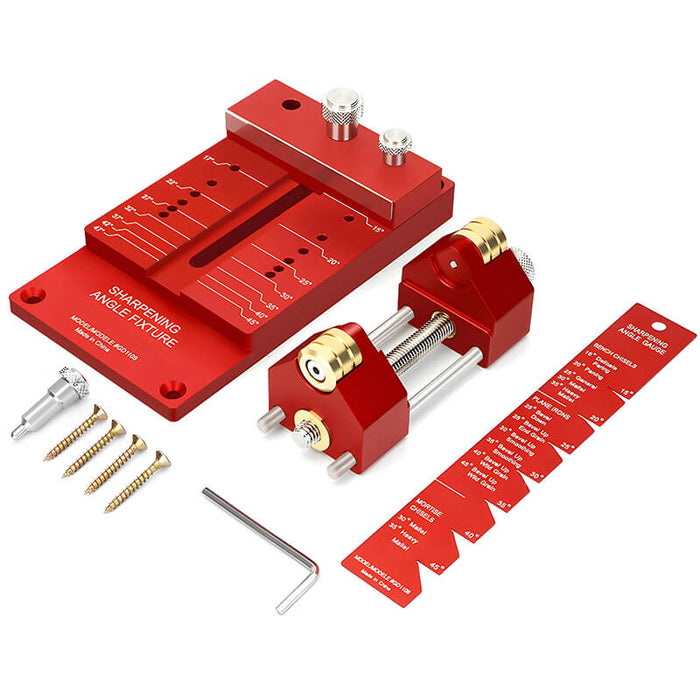

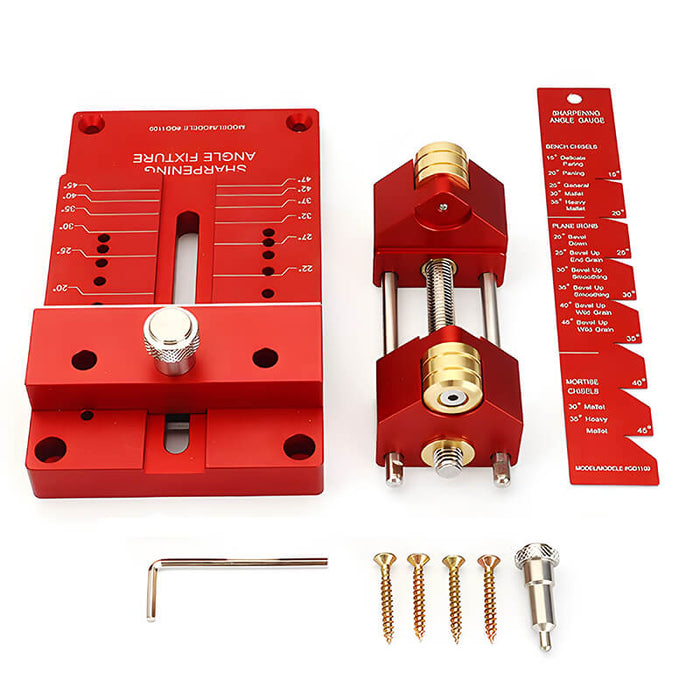

Levoite Sharpening System honing guide for chisels and plane irons. Chisel sharpening guide kit, chisel sharpener jig fits chisels or planer blades. Sharpening system comes complete with the Sharpening Guide, Sharpening Gauge and Sharpening Angle Fixture.
Sharpening System Tips & Tricks
Now sharpen your chisels and plane blades like a Pro with this simple and precision sharpening system get professional results !
Put the three components together and you have the ultimate companion for your hand tools and bench stones.
Sharpening Guide
Sharpening Angle Gauge
Sharpening Angle Fixture
Levoite Sharpening System kit makes the sharpening process easier, more accurate and quicker than freehand sharpening and has features you won't find in any competitive sharpening guide.
Sharpening Woodworking Chisels & Plane Irons :
There is no better feeling in woodworking than making a cut with a razor-sharp tool. Be it an end-grain paring cut with a chisel or a whisper-thin shaving coming off a smooth plane, there's nothing as satisfying as the sound of the cut and the feel of the finished surface. Part of what makes that experience so satisfying is the memory of the time and effort that went into getting the edge ready for the cut. If you want sharper tools faster this is the system for you.
If you're not sure of the angle on your tool to begin with, or you want to check it after sharpening, the Sharpening Guide come with a Sharpening Angle Gauge. The edge has precision-cut notches representing all the standard sharpening angles. The face is printed with a handy chart which suggests the correct angles for different hand tools operations.
A Systematic Approach to Woodworking Tool Sharpening
The first difference you'll notice between Levoite Sharpening Guide and the others is that our design uses two rollers, instead of one. From the first day of geometry class we all remember that three points constitute a place, and that's exactly why we build in two rollers. Combine the two rollers with the bevel of your tool and you've defined a flat plane. Precision-machined shoulders in the jaws hold your tool perpendicular to the axles and parallel to the wheel surfaces. This design virtually ensures a square edge on your tool perpendicular to the axles and parallel to the wheel surfaces. This design virtually ensures a square edge on your tool if your sharpening stone is flat.
FEATURES : Two rollers design: Combine the two rollers with the bevel of your tool and you've defined a flat plane. Precision-machined shouders in the jaws hold your tool perpendicular to the axles and parallel to the wheel surfaces. This design virtually ensures a square edge on your tool if your sharpening stone is flat.
Easily change - To make those wheel changes simple: Just spin the clamping screw out, slide the slave jaw off the guide posts and you have wide open access to the wheel mounting screwvs. While you're putting it back togeter, you'll notice the deep, square cut Acme thread. lt spins down fast and grips the tool tight.
To make those wheel changes simple you have wide open access to the wheel mounting screws. While you're putting it back together, you'll notice the deep, square cut Acme thread. It spins down fast and grips the tool tight. All steel components are stainless, the aluminum jaws are anodized and the wheels are bronze... Everything is corrosion resistant. You can (and should) dunk it in water without worry.

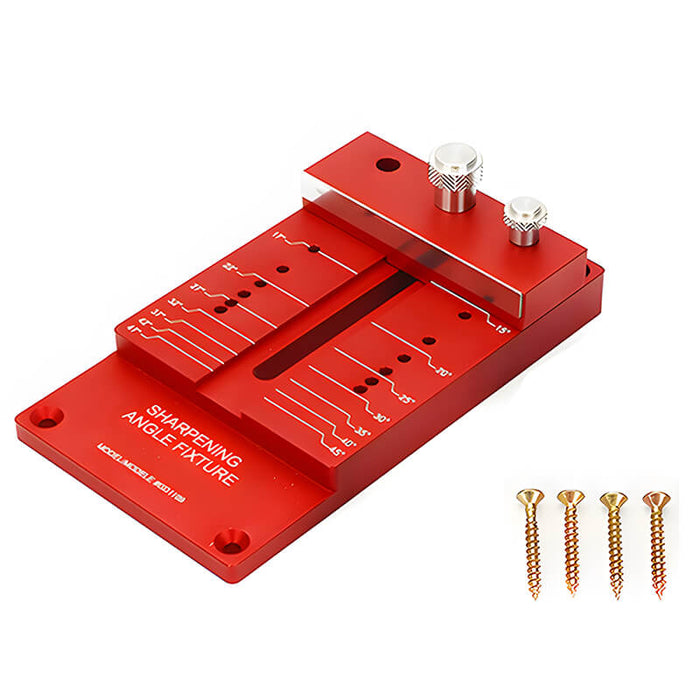

Sharpening Angle Fixture for different angle : This handy set-up tool gives you a precise refrence fo primary bevel angles from 15° to 45° in 5° increments and a 2° micro-bevel off for every one of those primary bevels. Each angle has a postive pin registration, making repeat sharpening quick and easy.
As you' re getting ready to set up your first tool, you' Il notice that the Sharpening Guide is perfectly symmetrical..there' s no front or back or left or right. Most right- handers will want the clamping knob on the right when clamping the tool in. Lefties will normally want it on the other side. No matter what' s comfortable to you, it works. Just place the Sharpening Guide upside down and against the guide stop on the Angle Fixture. Place your tool in the jaws and against the stop and lock it. That' s it...you' re dialed in for sharpening on your bench stones. Since you' re guiding from the stone surface you never have to worry abouit the angle changing if your stones aren' t all the same thickness.
The angle sharpened on your tool is determined by how much tool is projecting from the front of the Sharpening Guide. But, if you sharpen a wide variety of tools at lots of different angles, you'll want the Sharpening Angle Fixture. This handy set-up tool gives you a precise reference for primary bevel angles from 15° to 45° in 5° increments and a 2° micro-bevel offset for every one of those primary bevels. Each angle has a positive pin registration, making repeat sharpening quick and easy.
Levoite Precision Sharpening System honing guide for wood chisel and plane irons.This handy set-up tool gives you a precise refrence fo primary bevel angles from 15° to 45° in 5° increments and a 2° micro-bevel off for every one of those primary bevels. Each angle has a postive pin registration, making repeat sharpening quick and easy. chisel sharpening jig, chisel sharpening guide, chisel and plane sharpening jig, honing guide for chisels.
