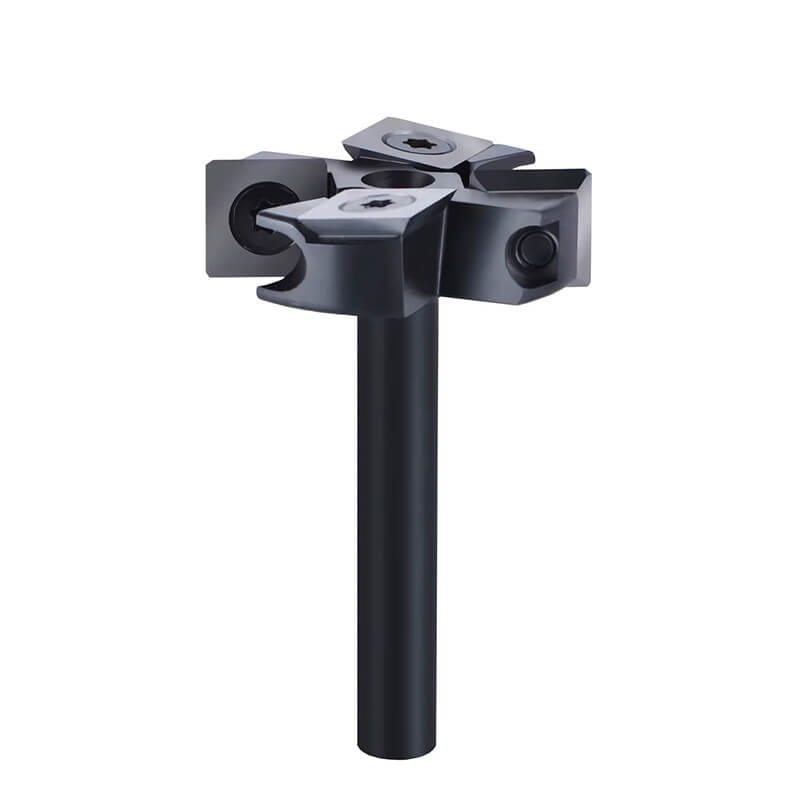

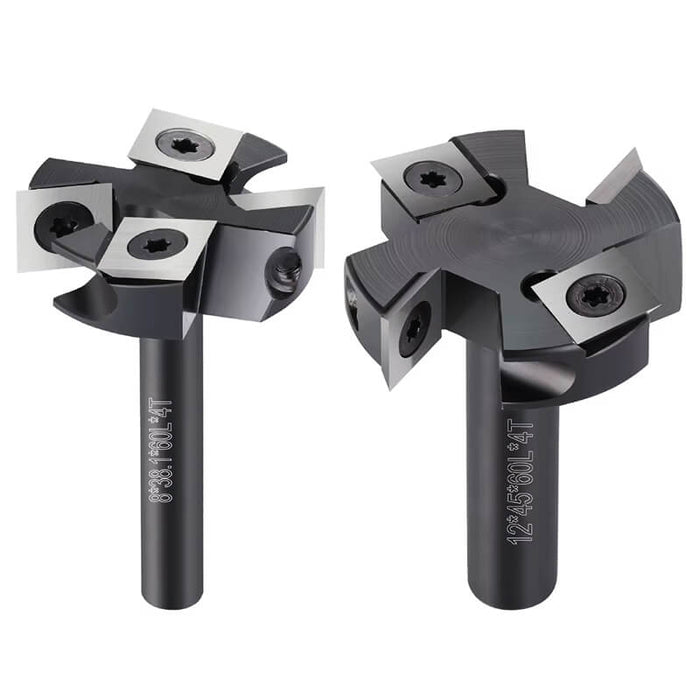

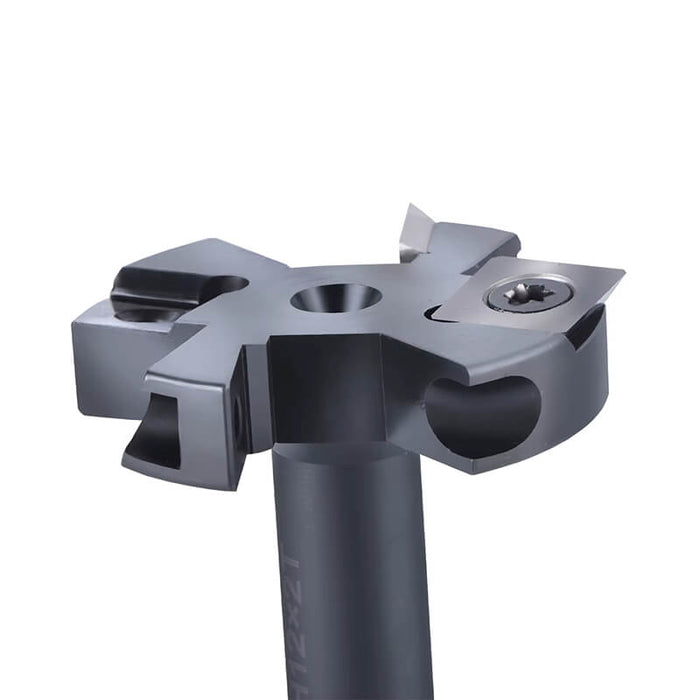

Levoite™ Flattening Router Bits - Carbide Insert 4-Flute Spoilboard Router Bits

DESCRIPTION :

Flattening Router Bits - Carbide Insert 4-Flute Spoilboard Router Bits. Milling Cutter CNC Spoilboard Surfacing Router Bit 8/12mm Shank Insert Carbide Slab Flattening Router Bit Wood Planer Bit.

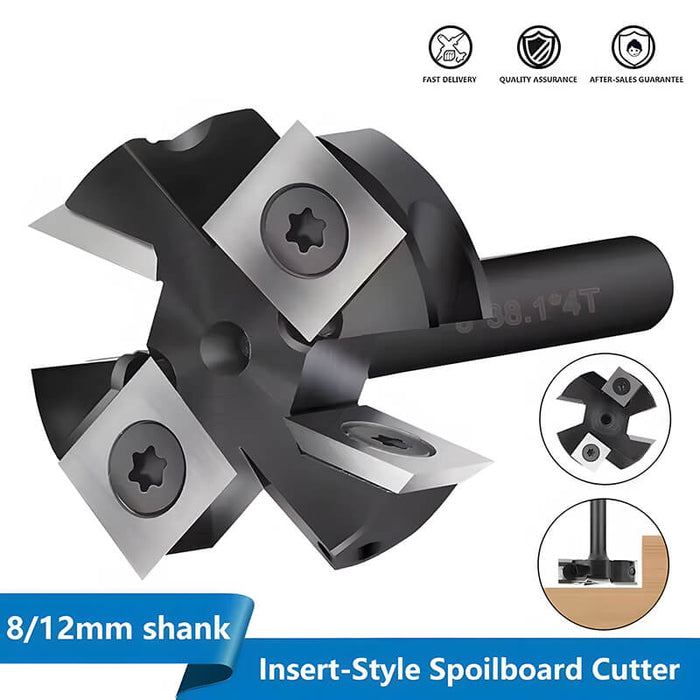

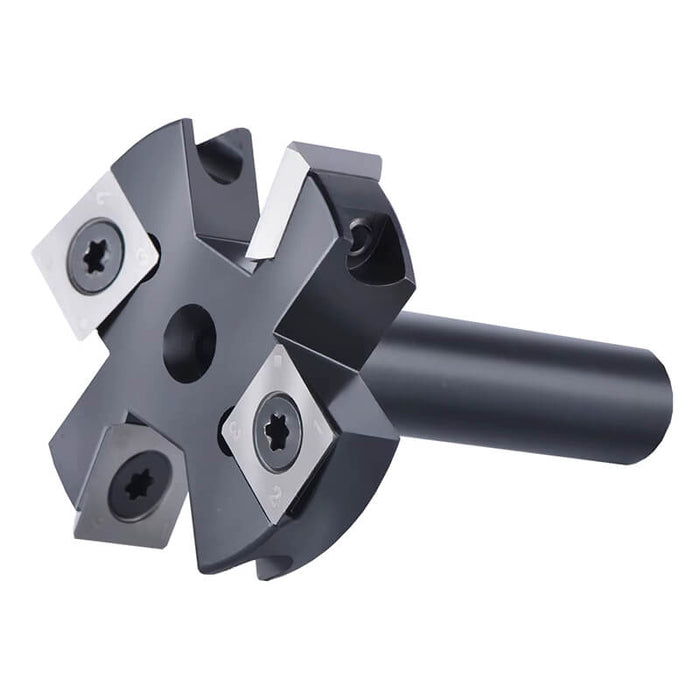

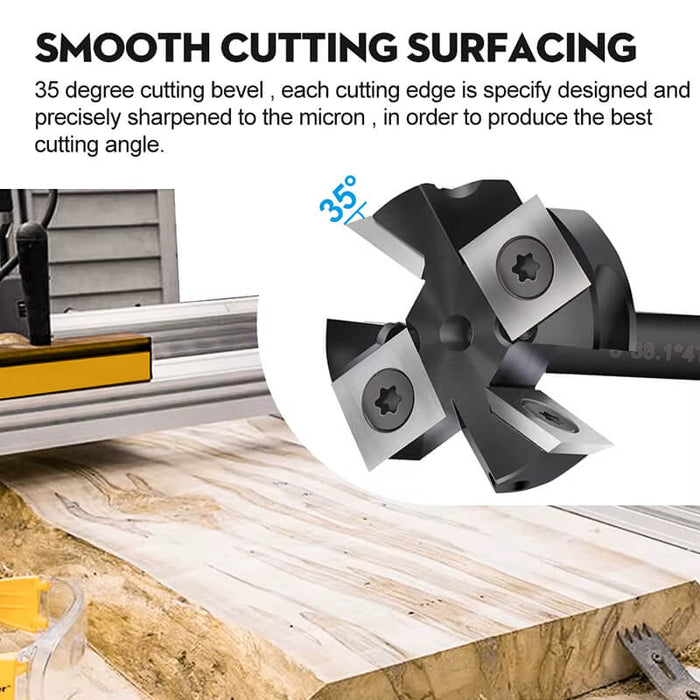

Carbide Insert Spoilboard Bit is the last surfacing bit you'll ever have to buy. Few things in the shop are more annoying than a dull router bit. And that annoyance is multiplied when the bit is a big, expensive one.  Carbide Insert Spoilboard Bit uses three 4-edged carbide inserts rather than brazed carbide tips. When the edges dull, just rotate the inserts 90° and you're right back to work with razor-sharp fresh edges.

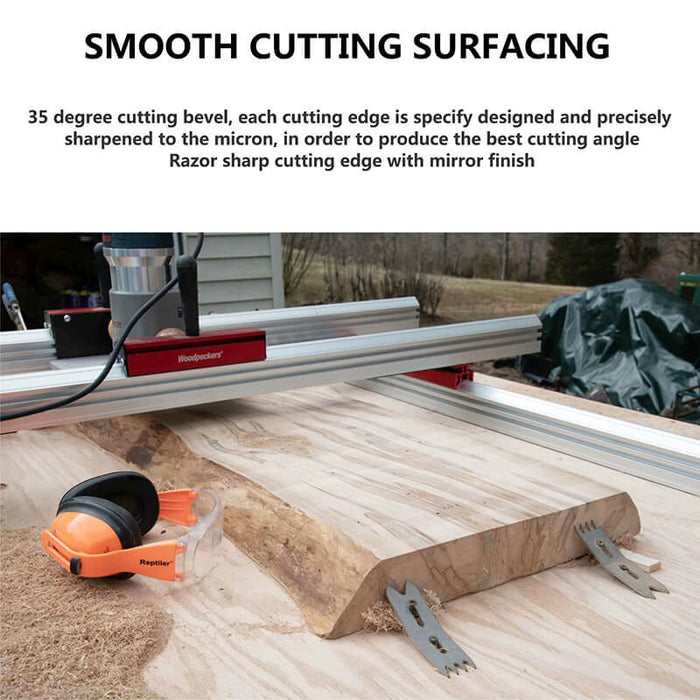

Spoilboard Surfacing Router Bit, Slab Flattening Router Bit , 2+2 Flutes Insert Carbide Wood Planer Router Bits, Planing Bit for Woodworking. Wood Planer Bit 45mm 38.1mm Cutting Diameter, 12mm 8mm Shank, Spoilboard Surfacing Router Bit, Insert Carbide Slab. This professional bottom cleaning router bit is not only perfect for wood slab flattening, resurface or plane the top surface of the spoilboard, but also for trimming and slotting/grooving. Great replacement bit tool for woodworking.

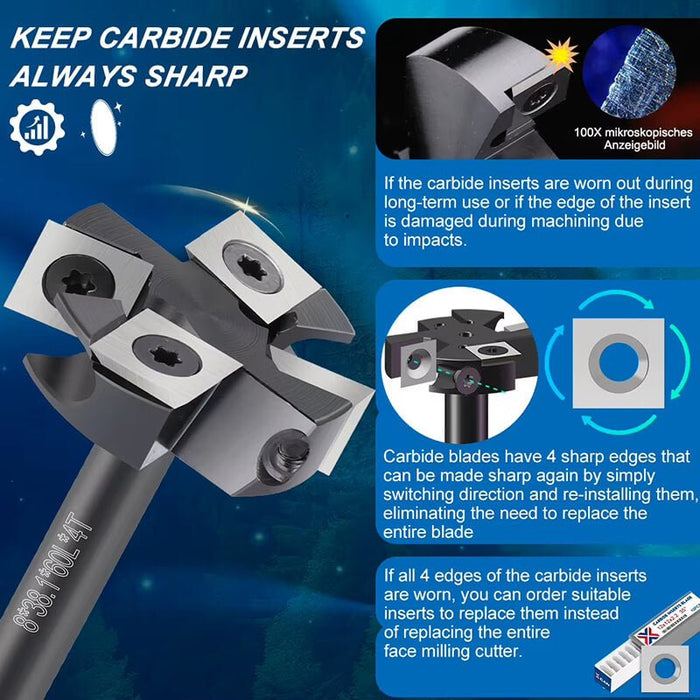

The surfacing router bit utilizes 4-sid solid carbide inserts. All 4 edges can be used, use a screwdriver(include) to make other blade edge outside. Can replace the carbide inserts when needed, instead of replacing the whole bit. Cost effective solution compared to brazed router bits and solid carbide spiral bits.

Suitable for soft and hard woods, MDF, laminate, particle board, plywood compact panel, acrylic and etc. Avoid cutting metal and non-wood materials;

FEATURES :

• 4-sided solid carbide insert knives

• Exclusive carbide grade for highest quality of cut
• Maximum cutting efficiency
• Faster material removal process

SPECIFICATIONS :

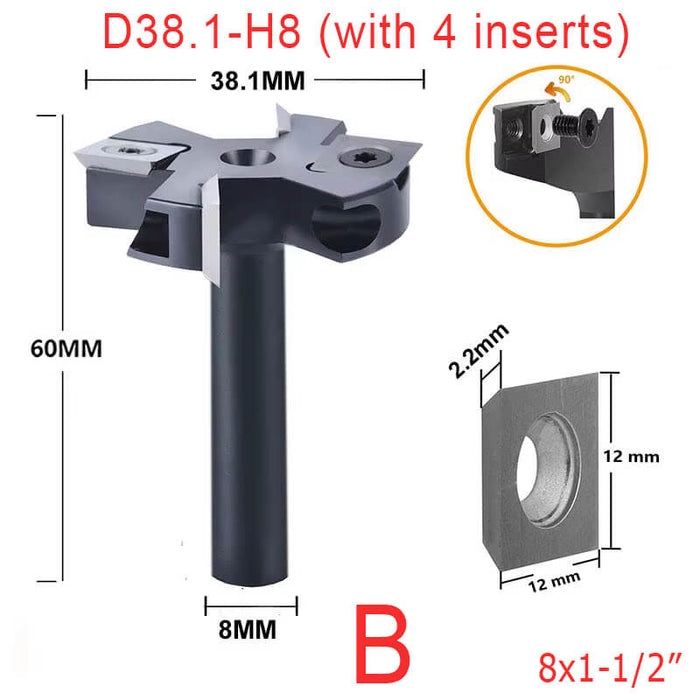

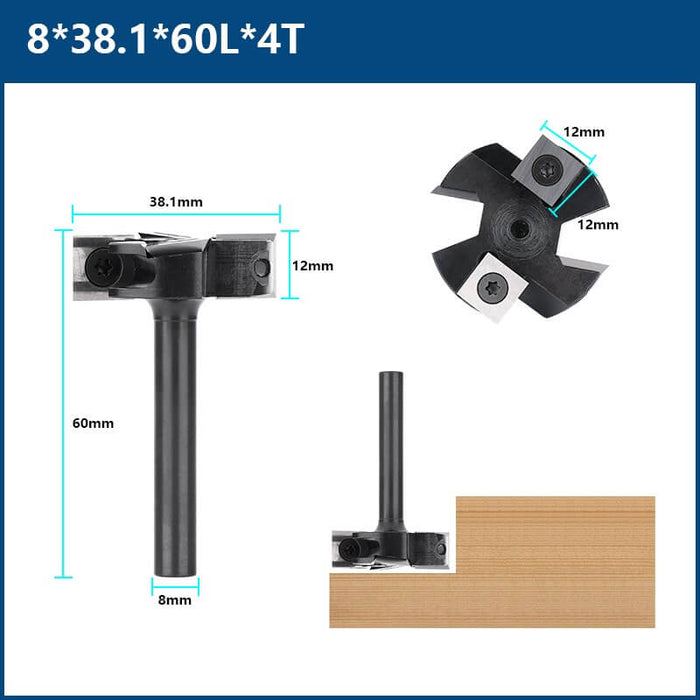

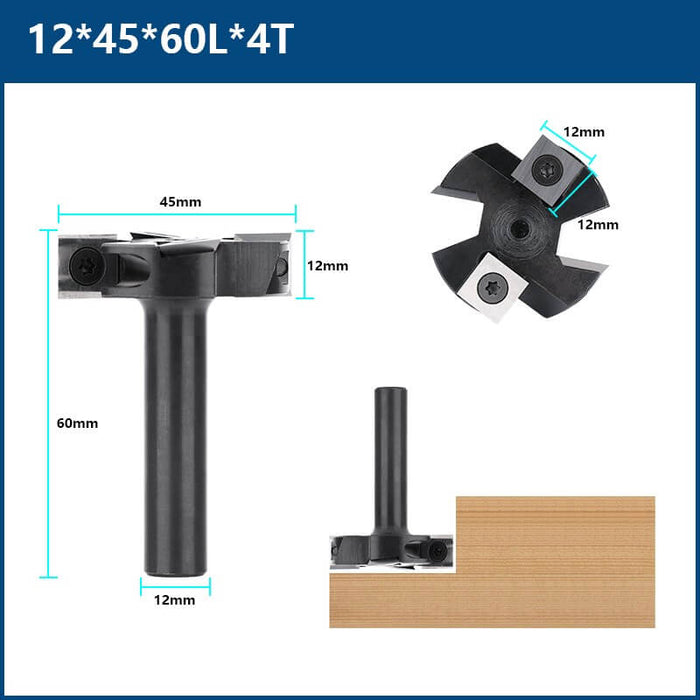

• Shank diameter   : 8mm 12mm;
• Cutting diameter : 38.1mm, 45mm;

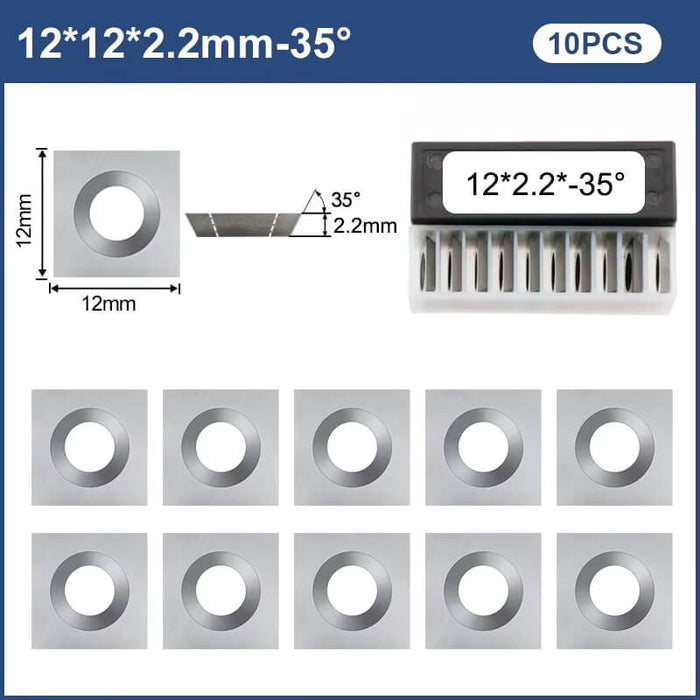

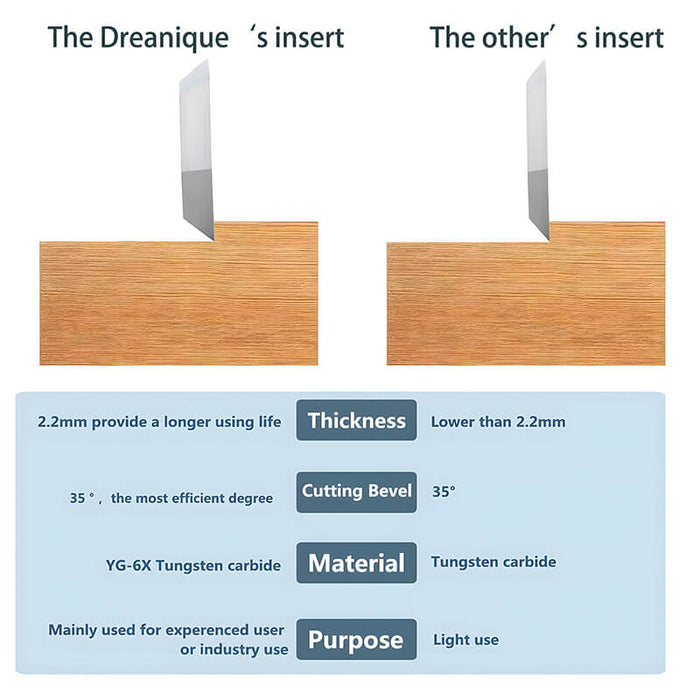

• Carbide inserts     : 12*12*2.2mm.
• Grade of carbide inserts ：YG6X.
• Countersunk screw : M4*7

Cutting Parameter:

D38: Feed 5000-9000mm/min, RPM: 10000-15000

D45: Feed 5500-9500mm/min, RPM: 10000-15000
